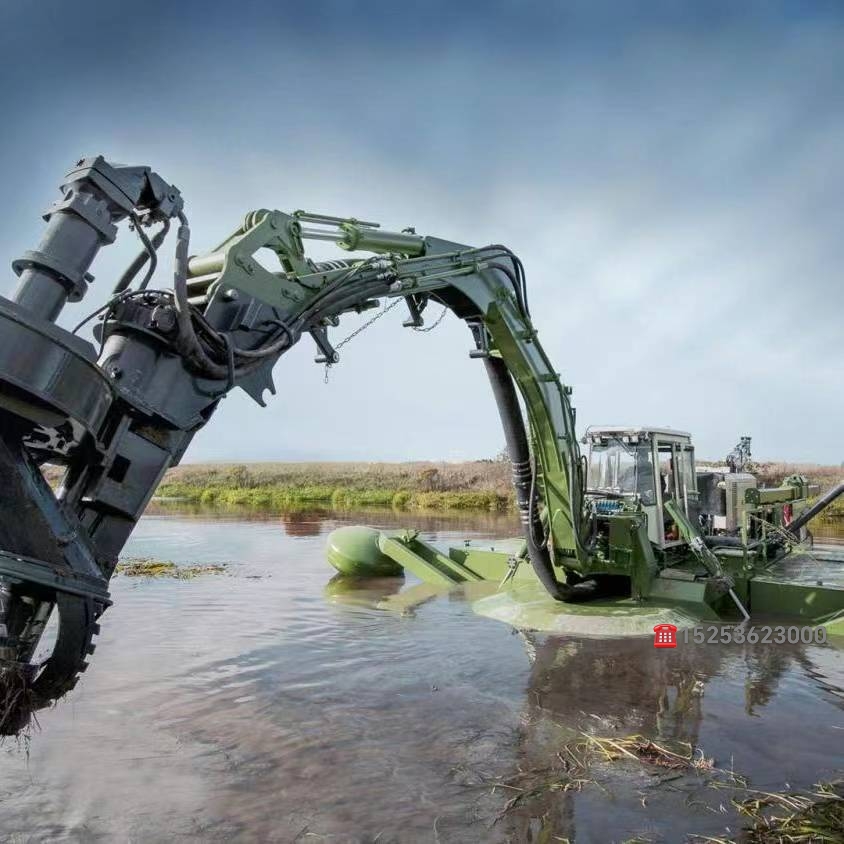

HUAYAO amphibious excavator is widely and efficiently used in water conservancy projects, urban and rural construction of rivers and lakes dredging, wetland marshes and beaches resource development and environmental remediation excavation.
This amphibious excavator is a kind of multi-purpose excavator suitable for land, swamp soft ground and shallow water working environment. The walking device adopts multi-hull floating tank structure and sealed box-shaped track plate, which can walk and work safely on silt and water surface. The reinforced ultra-long working arm and efficient rotating mechanism ensure the working quality and digging efficiency. The spacious driving space and the simple audio-visual warning system improve the ease and comfort of handling. The scientific and reasonable matching of the advanced hydraulic system and the power system can realize the compound operation conveniently. When working in relatively deep water, it can realize deep water operation by adding side float tank and erecting positioning pile, ensuring the unity of high efficiency and high economy of work.
Base upper excavator | / | CAT 305.5E2 | CAT 316GC | CAT 320 | CAT 330 | CAT 349 | |
Total weight (without side pontoons or spuds) | kg | 6100* | 22800*/24400** | 30700*/32800** | 45400*/47800** | 70900*/76200** | |
Work equipment (standard) | Boom length | mm | 3200 | 4650 | 5700 | 6150 | 6900 |
| Arm length |
| 1500 | 2500 | 2900 | 3200 | 3350 |
| Bucket capacity | m³ | 0.22 | 0.65 | 1.0 | 1.8 | 2.61 |
Work equipment (long reach option) | Boom length | mm | None | 7800 | 9000 | 10200 | 13000 |
| Arm length |
| None | 5800 | 6800 | 7850 | 11000 |
| Bucket capacity | m³ | None | 0.4 | 0.5 | 0.65 | 1.0 |
Working range | Max digging height | mm | 5960* | 9080*/12980** | 10120*/13820** | 10750*/15500** | 12050*/20200** |
| Max digging depth |
| 3220* | 4630*/9760** | 5970*/11270** | 6500*/14200** | 6380*/19000** |
| Max digging reach |
| 5955* | 8850*/11700** | 9860*/16150** | 10950*/18600** | 11440*/23500** |
| Max digging reach on ground |
| 5780* | 7980*/10370** | 9730*/15400** | 10450*/17800** | 11200*/23200** |
Vehicle dimension (only with main pontoons) | Total length during parking |
| 6685* | 8470*/11300** | 11250*/14055** | 12540*/16770** | 14910*/20050** |
| Total width during parking |
| 2100 | 4390 | 4800 | 6000 | 6240 |
| Total height during parking |
| 3400* | 4030*/4030** | 4120*/4120** | 4280*/4260** | 5000*/4870** |
| Scale range(option) |
| -500 | -600 | -600 | -1000 | -1000 |
Remarks
1. All dimensions are approximate and vary according to configuration.
2. Customize design is available according to your selected excavator brand and model.
Service & Warranty
As one innovative enterprise we have large investment in our global service system, thus we have many service team for different countries, we will give prompt support if there is something wrong with your equipment. And for standard deal we offer 12 months warranty and service with free spare parts, which would confirm you could get prompt support. Even after warranty expires we can offer you service and support with most basic charge. We are not targeting to only sell you equipment, we prefer to be your business partner and offer you one-stop dredging solution.
