一. Working Principle
Mobile crushers can crush raw stones into coarse, medium or fine crushing by configuring different types of crushing equipment (such as jaw crusher, impact crusher, cone crusher, hammer crusher, etc.). The whole machine can directly drive into the raw material site to achieve on-site crushing and on-site discharging, greatly reducing the cost of material transportation.
⸻
二. Main components
1. Crusher: different types of crushing equipment are configured according to demand.
2. Conveying system: including feed conveyor, discharging conveyor, etc., for material transportation.
3. Power system: commonly diesel engine or motor, providing energy required for the operation of the whole machine.
4. Vehicle chassis: divided into tire type and crawler type, which is convenient for equipment movement.
5. Control system: realize automatic operation and safety control of equipment.
⸻
三. Type classification
1. Tire mobile crusher: suitable for work sites with good road access and convenient transfer.
2. Crawler mobile crusher: strong off-road capability, suitable for complex terrain and irregular working environment.
According to the configuration, it can also be divided into:
• Mobile jaw crusher (coarse crushing)
• Mobile impact crusher (medium and fine crushing)
• Mobile cone crusher (medium and fine crushing)
• Mobile sand making machine (for sand and gravel shaping and sand making)
⸻
四.advantages and characteristics
• Flexible mobility: can be flexibly transferred with the progress of the project, without the need for infrastructure construction.
• Cost saving: reduce transportation costs and time, and improve overall production efficiency.
• Flexible configuration: different crushing combinations can be customized according to production needs.
• Green and environmentally friendly: closed design, dust removal device can be configured to reduce dust pollution.
• High degree of automation: support remote control and intelligent monitoring.
⸻
五. application areas
• Construction waste recycling and treatment
• Mining stone mining and crushing
• Road and railway construction material crushing
• Concrete mixing station, sand and gravel plant raw material processing

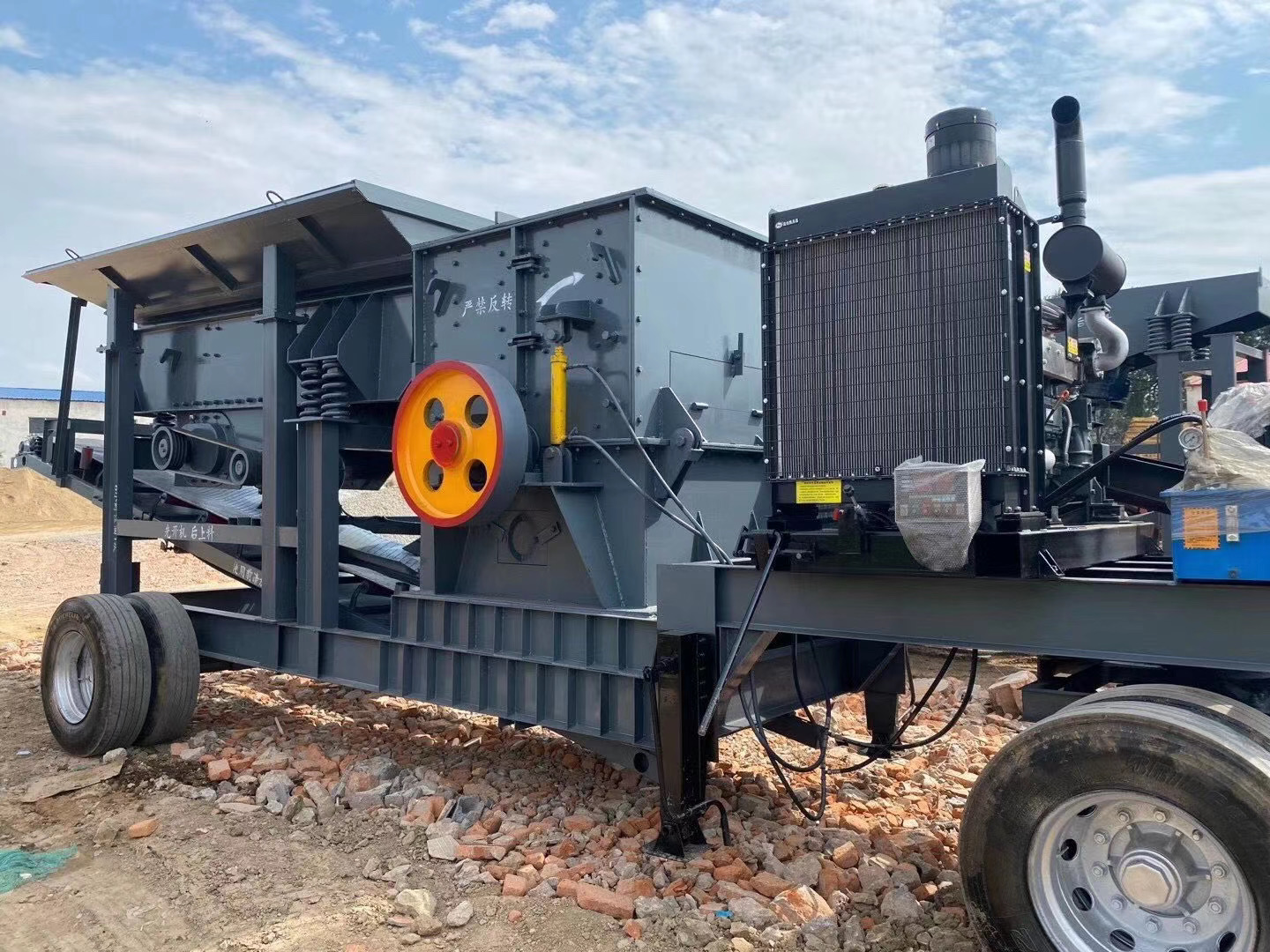

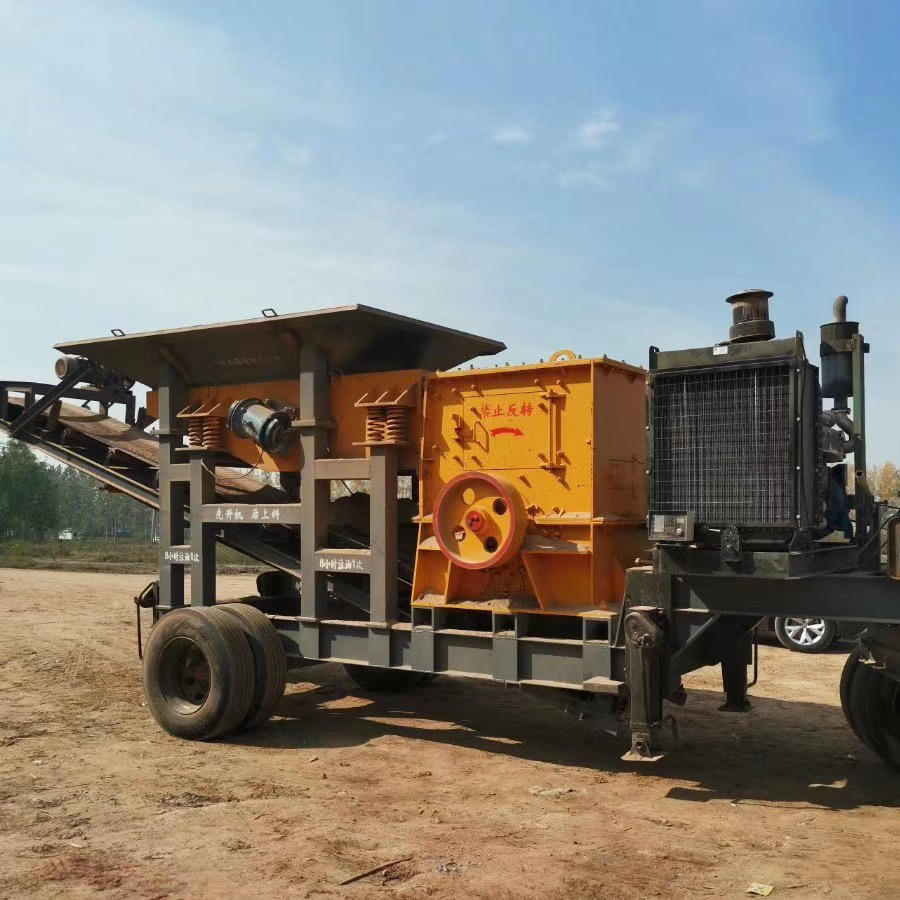

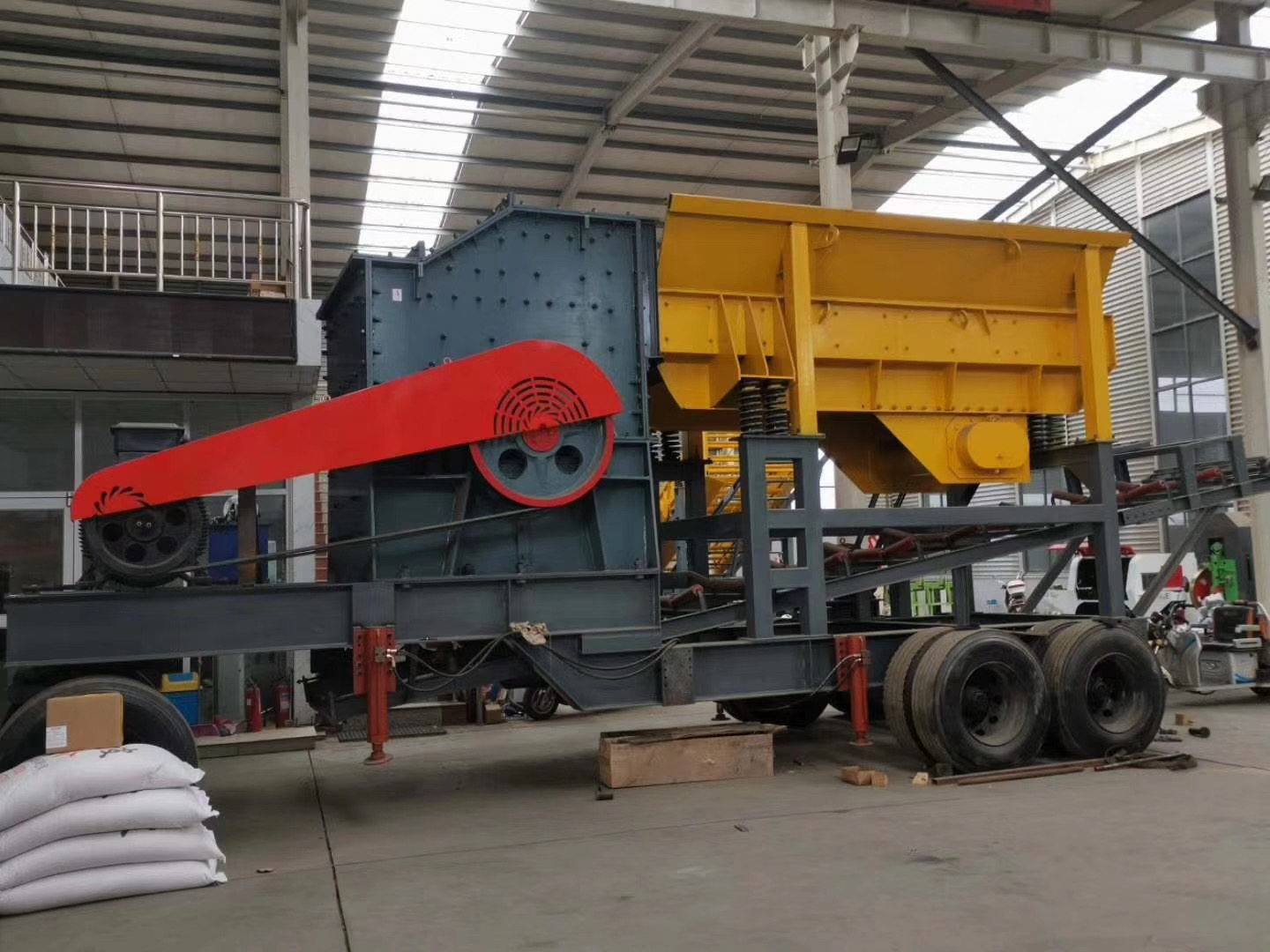

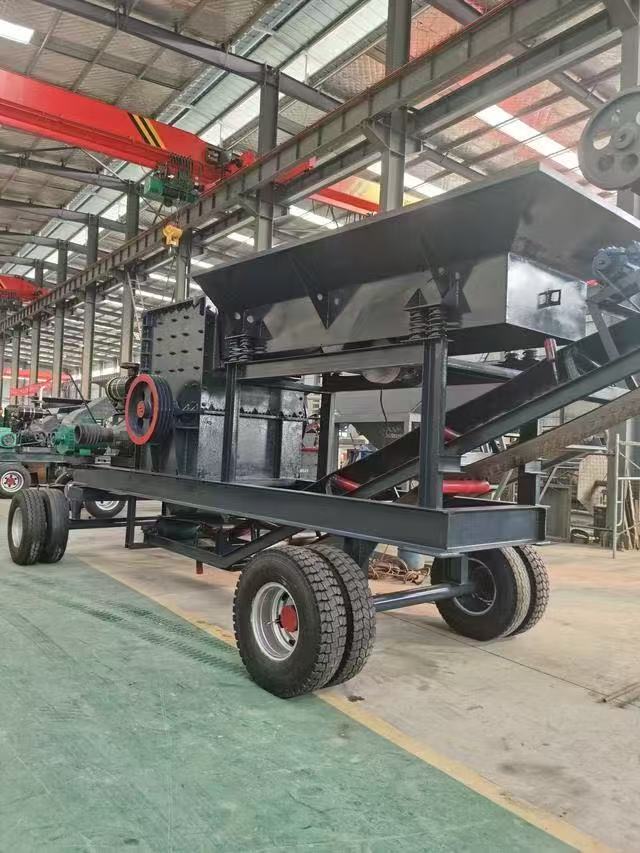

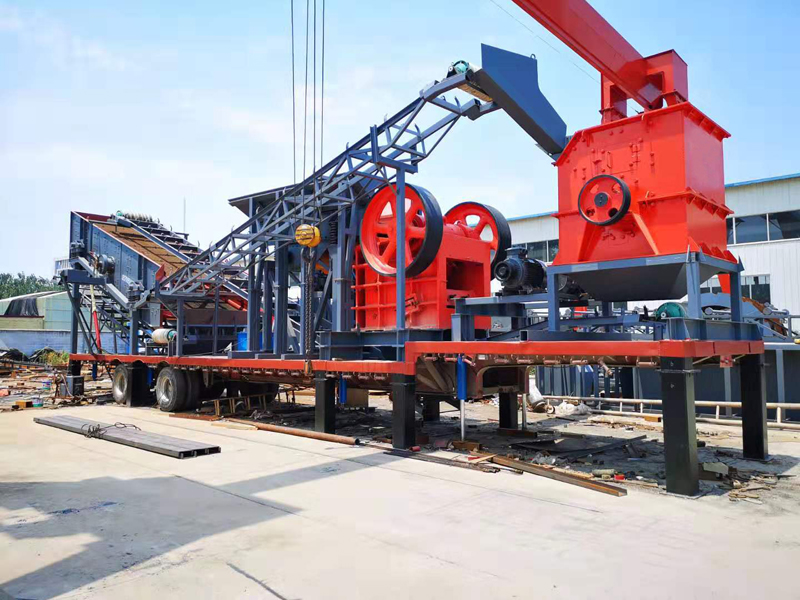

Mobile crusher is a kind of movable crushing equipment integrating crushing, screening, conveying and other functions. It is widely used in mining, construction waste treatment, highway and railway, water conservancy, energy and other industries. Its main features are strong flexibility, convenient transportation, diverse configuration and strong on-site operation ability.
MoreJaw crusher is a common coarse crushing equipment, mainly used for primary crushing of various ores and bulk materials. It is widely used in mining, metallurgy, building materials, highways, railways, water conservancy and chemical industries due to its simple structure, reliable operation and large crushing ratio.
MoreCone crusher is a kind of equipment widely used in metallurgy, construction, road construction, chemical industry and silicate industry for medium and fine crushing of various ores and rocks. According to the different structures and working principles, cone crushers are mainly divided into spring cone crusher, single cylinder hydraulic cone crusher and multi-cylinder hydraulic cone crusher.
